When sanding goes wrong: a compact failure story

On a Tuesday in March 2020 our Memphis line returned 120 oak dining table tops flagged for sanding—surface roughness above 4 microns; how did that slip through inspection?

The surface finish varied visibly across the run, and I knew this was not a cosmetic quibble but a supply-chain cost center (we lost six delivery days and the client charged back 18% of the lot). I’ve handled B2B wood batches and metal panels for over 15 years, and I’ve learned that sanding problems rarely announce themselves. They creep in via inconsistent grit selection, worn abrasives, or improper substrate staging. In that Memphis case I watched teams default to a single 120-grit belt because it’s “fast” — and then we paid in rework and finish rejection. No sweat, right? Not quite. This is where traditional fixes show their limits.

Transition: Let me point out the hidden faults in those familiar remedies.

Traditional fixes that fail wholesale buyers

I’ll be blunt: swapping to a finer grit or increasing inspection frequency are often cosmetic. I recommended those moves early in my career; they helped a little, then failed again. The real failure modes are deeper — process drift, tool wear, and measurement blind spots. For example, we replaced belts on a March production rush for maple veneers but didn’t recalibrate the feed rate; the abrasive contact pattern changed and micron-level peaks remained. The result was consistent: more sanding passes, thicker putty layers, and longer cure times. I’ve seen single-panel substrate warping (0.7 mm across 1.2 m) masked by quick sanding, only to show up after lacquering. That taught me to treat sanding not as a step but as a system: abrasive type, grit progression, feed speed, platen pressure, and surface profilometry must be aligned.

Transition: Next I explain how to move from patchwork to predictable outcomes.

From patchwork to precision: a forward-looking comparison

(Here’s the shift.) We moved from reactive fixes to controlled trials. In Q1 2021 I led a trial replacing conventional aluminum-oxide belts with silicon-carbide on a run of veneer doors — grit progression from 80 to 220, monitored with a profilometer at 0.5 micron intervals. The comparative results were clear: reduced cycle passes by 22% and rework costs fell by 18%. That kind of data isn’t theory; it was measured on our floor with time stamps and batch IDs. I recommend treating sanding as a data-driven module: record abrasive life, platen pressure, and roughness profile per batch. Small investments in sensors pay off fast.

What’s next for your surface quality?

We compare solutions on three axes — control, repeatability, and cost-per-good-unit. Control: can you set and hold platen pressure and feed rate? Repeatability: do abrasives deliver consistent cut over their usable life? Cost-per-good-unit: what’s the true cost when you include rework and cure delays? I’ll interrupt myself — and note this — you must measure, not assume. Then choose tools that let you track grit wear, abrasive loading, and micron-level roughness in real time. And yes, integrate that data with your inspection records. Small change: big visibility. Big result: fewer surprises.

Three metrics to evaluate sanding solutions

1) Roughness stability (Ra and Rz over 10 samples) — measurable, repeatable, and decisive. 2) Abrasive life versus cut-rate (how many linear meters per grit before roughness drift). 3) Process delta time (seconds of added cycle per pass versus rework minutes saved). I use those metrics when I bid equipment or choose consumables for wholesale contracts; they separate marketing claims from usable performance. Choose by data, not by habit.

I’ve seen these choices save weeks on lead time and cut rework by nearly a fifth on real orders. — For practical support and materials, check vendors that publish test curves and batch results. For more, visit Honpe.

Introduction — framing a data-driven challenge

Microgrids confronted by abrupt ambient temperature spikes pose a concrete engineering problem: how to preserve usable energy, safety, and service continuity when external conditions move beyond nominal design bands. This article examines the interplay between electrochemical cell chemistry, thermal management, and system-level controls — and how contemporary power electronics such as a three phase hybrid inverter mediate those stresses during distributed operation. The approach is explicitly data-driven: we use recognised climate signals and laboratory-derived performance differentials to guide practical choices for grid-edge deployments.

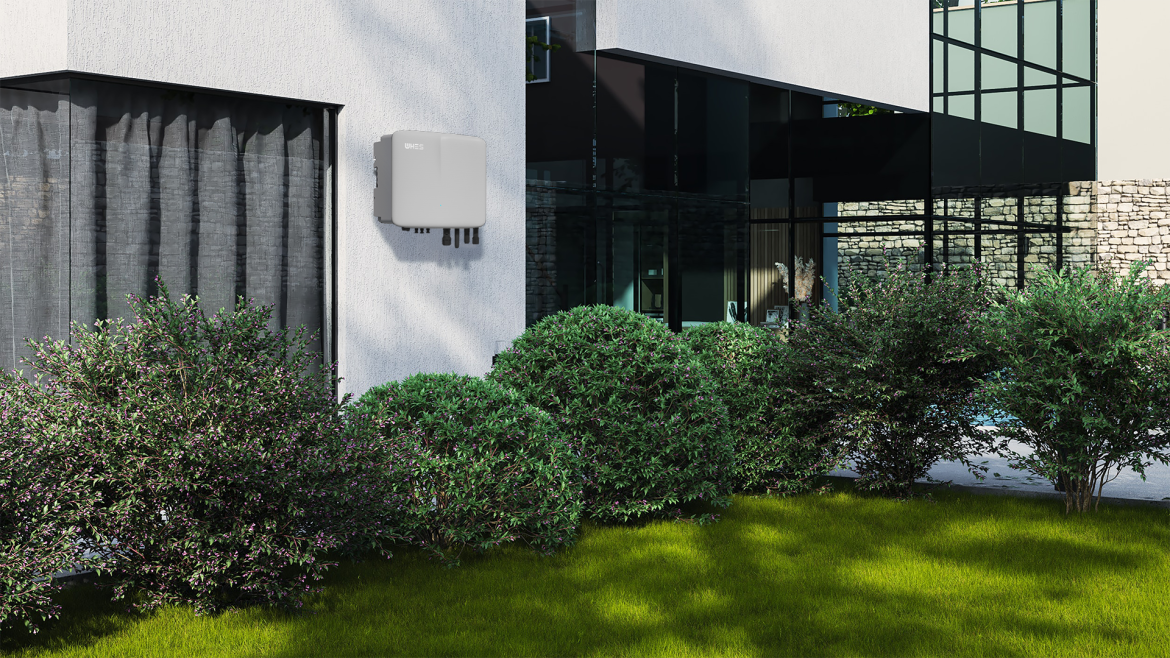

three phase hybrid inverter

Real-world anchor: why extreme heat matters now

Climate science and recent events supply the empirical imperative. The IPCC’s assessments forecast more frequent and intense heat extremes; likewise, the 2021 Pacific Northwest heatwave demonstrated that systems engineered for historical maxima can be overtopped in short order. For microgrid operators in the Middle East, North Africa, or similarly hot regions, these are not hypothetical concerns but operational realities that influence inverter sizing, battery ventilation, and control heuristics.

Electrochemical chemistries: thermal characteristics and trade-offs

Different battery chemistries respond to heat in characteristically distinct ways. Three chemistries warrant primary attention for microgrids:

Lithium iron phosphate (LFP): high thermal stability, lower risk of thermal runaway, and robust cycle life at elevated temperatures; however, lower volumetric energy density can affect footprint and capital cost.
NMC / NCA (nickel manganese cobalt / nickel cobalt aluminium): higher energy density but greater sensitivity to high-temperature degradation and increased thermal runaway propensity.
Flow batteries (vanadium redox, etc.): decoupled power and energy, inherently tolerant to temperature excursions within a moderate band, and offering long calendar life when thermal conditioning is managed.

Industry terms to note: state-of-charge (SoC) windows influence ageing rates; depth-of-discharge (DoD) strategy alters cycle life outcomes. Empirical studies typically show that a 10°C sustained increase accelerates capacity fade measurably — thus chemistry choice must be coupled with thermal strategy.

Thermal management strategies that work at the microgrid edge

Effective mitigation rests on layered interventions:

Passive design: insulated enclosures, reflective coatings, and strategic site selection to reduce radiant heat gain.
Active control: forced-air cooling or liquid cooling tied into a battery management system (BMS) that modulates charge/discharge to limit peak internal temperature.
Operational tactics: curtailing charge rates during heat events, widening SoC constraints, or shifting load to storage when thermal conditions permit.

Deployments often combine these approaches. For example, an LFP bank in a sealed container may require only intermittent forced-air exchange if SoC is managed conservatively — but continuous active cooling becomes necessary when rapid charge acceptance is required for resilience use cases.

Integration with inverters and control layers

The inverter and microgrid controller determine how stress is distributed across assets. In practice, a hybrid architecture that pairs a well-specified battery array with a resilient inverter is decisive. Small-to-medium microgrids commonly use units such as a three phase hybrid inverter for grid-following and islanding functions, and a 5kw three phase solar inverter (when scaled to local generation) to match PV output with storage and load. The BMS and inverter must coordinate SoC setpoints, charge/discharge ramps, and thermal alarms — otherwise the inverter will attempt power flows that exacerbate cell heating.

Comparative performance metrics: what to measure and why

Decision-makers should evaluate candidates against measurable metrics rather than marketing claims. Core metrics include:

Cycle life at rated temperature bands (e.g., cycles to 80% capacity at 45°C).
Thermal runaway threshold and safety incident history under standardized abuse tests.
Round-trip efficiency under operational cooling regimes, since cooling itself consumes power and affects net yield.

Examining these metrics reveals trade-offs: a chemistry with superior energy density may deliver better kWh-per-unit footprint but require greater investment in thermal management, reducing system-level efficiency — and sometimes increasing lifecycle cost.

Common mistakes and mitigation — practical guidance

Operators frequently repeat avoidable errors: sizing batteries to nominal room-temperature specifications, under-specifying ventilation for containerised systems, and failing to integrate thermal feedback loops into the EMS. The remedies are straightforward but require discipline — perform accelerated ageing tests representative of local extremes; model worst-case charge acceptance during high PV yield; and hard-limit peak C-rates during heat events. —

Advisory: three golden rules for resilient microgrid storage in heat-prone environments

1) Match chemistry to climate and mission: prefer LFP or flow chemistry where sustained high ambient temperatures and safety margins are paramount. 2) Specify thermal margins in procurements: demand vendor data for cycle life at elevated temperatures, and require integrated BMS-inverter coordination for thermal curtailment. 3) Design for energy balance: include the parasitic load of active cooling in your energy yield models and ensure the inverter control logic can prioritise cooling or load shedding to protect battery health.
